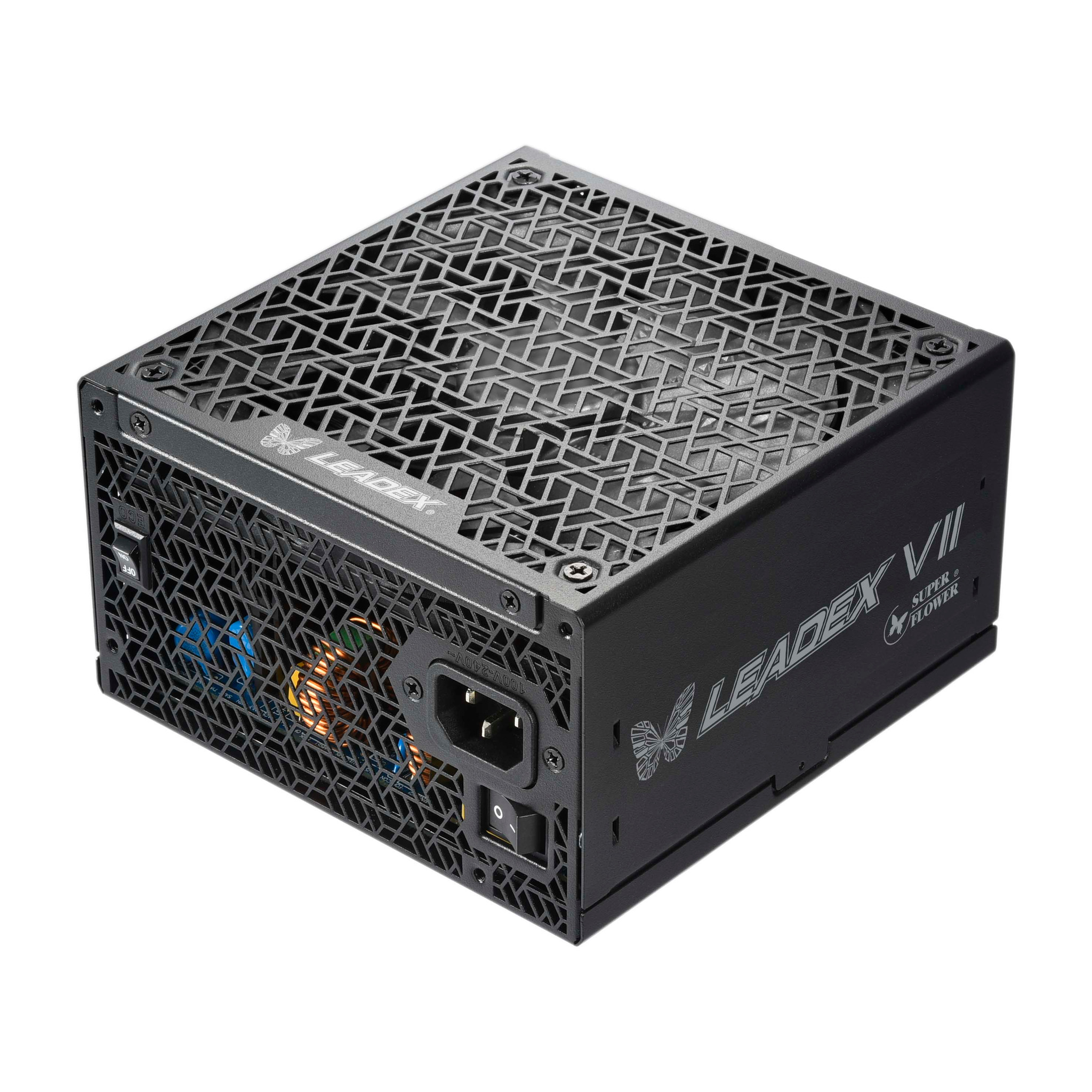

SuperFlower SF-1200F14XP LEADEX VII PRO PLATINUM ATX3.1

The SuperFlower SF-1200F14XP LEADEX VII PRO PLATINUM ATX3.1 is a high-end, fully modular power supply unit engineered to meet the needs of modern, power-hungry systems. With a 1200W rated output and certification under both 80 PLUS Platinum and ETA Platinum standards, it delivers excellent energy efficiency and low power loss, making it ideal for enthusiast-level PCs and workstations.

Compliant with the ATX 3.1 specification, this unit ensures future-proof compatibility with next-generation GPUs and components. It features two PCIe 16-pin (12V-2×6) connectors, specifically designed for powering modern graphics cards, alongside four PCIe 8-pin (6+2) connectors and a generous count of 12 SATA and 4 IDE (Molex) connectors, enabling robust multi-device configurations.

Cooling is handled by a quiet and durable 140mm fluid dynamic bearing (FDB) fan, which supports fanless operation under low loads—a feature that significantly reduces noise during idle or light system use. The PSU is built with a compact 150mm depth, making it easier to fit into most mid and full tower cases.

Internally, the power supply uses high-efficiency design elements including a DC-to-DC converter and LLC resonant topology, which contribute to stable voltage regulation and reduced ripple. For protection and reliability, it includes a comprehensive set of industrial-grade safety features:

• Over Voltage (OVP)

• Under Voltage (UVP)

• Over Current (OCP)

• Over Power (OPP)

• Over Temperature (OTP/OHP)

• Short Circuit (SCP)

• Surge/Inrush Protection (SIP)

• No Load Operation (NLO)

This unit is also certified with LAMBDA Standard+ for acoustic performance, ensuring it stays quiet even under load. With a 12-year warranty, the LEADEX VII PRO represents long-term reliability backed by SuperFlower’s proven engineering.
