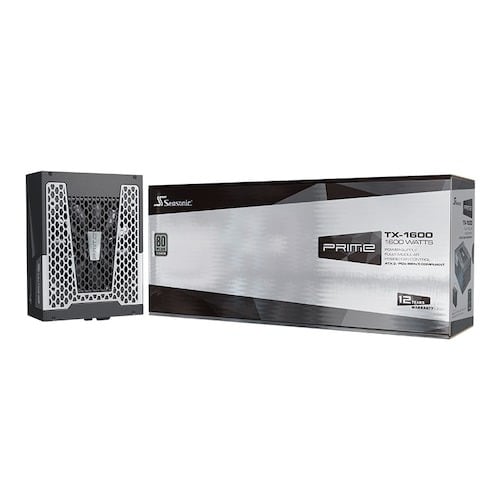

Seasonic PRIME TITANIUM TX-1600 Fully Modular ATX3.1

The Seasonic PRIME TITANIUM TX-1600 Fully Modular ATX3.1 power supply is a flagship-grade unit engineered for uncompromising reliability, efficiency, and performance in high-end computing environments. With an 80 PLUS Titanium certification and ETA Titanium efficiency rating, this PSU ensures minimal power loss, delivering outstanding energy savings even under full load.

Built with a +12V single-rail design capable of delivering up to 99% availability, it provides rock-solid stability for demanding hardware configurations. The power supply supports DC-to-DC conversion, ensuring precise voltage regulation across all rails, and includes active PFC with a power factor rating of 99%, making it both environmentally conscious and technically robust.

This unit features a fully modular cable design, allowing users to connect only the cables they need for cleaner, more efficient builds. It supports the latest ATX 3.1 and PCIe 5.0 standards, including two 12V-2×6 (12+4 pin) connectors, ensuring full compatibility with modern high-power GPUs. Additionally, it provides a generous array of connectors, including six PCIe 8-pin, three CPU 8-pin, and multiple SATA, IDE, and SATA 3.3 options.

Cooling is managed by a 135mm FDB (Fluid Dynamic Bearing) fan, known for quiet operation and long lifespan. The unit also supports a fanless mode under low loads and features automatic fan control, balancing silence with thermal performance. The internal layout is optimized with premium components and a depth of 210mm, indicating a substantial build ideal for full-tower installations.

Safety and protection are comprehensive, with circuitry guarding against over-voltage (OVP), under-voltage (UVP), over-current (OCP), over-power (OPP), over-temperature (OTP), short-circuit (SCP), inrush/surge (SIP), and no-load protection (NLP). This makes it a trusted choice for protecting valuable components in mission-critical systems.

With a 12-year manufacturer warranty and premium electrical performance, the PRIME TITANIUM TX-1600 represents the pinnacle of power supply engineering from Seasonic.
