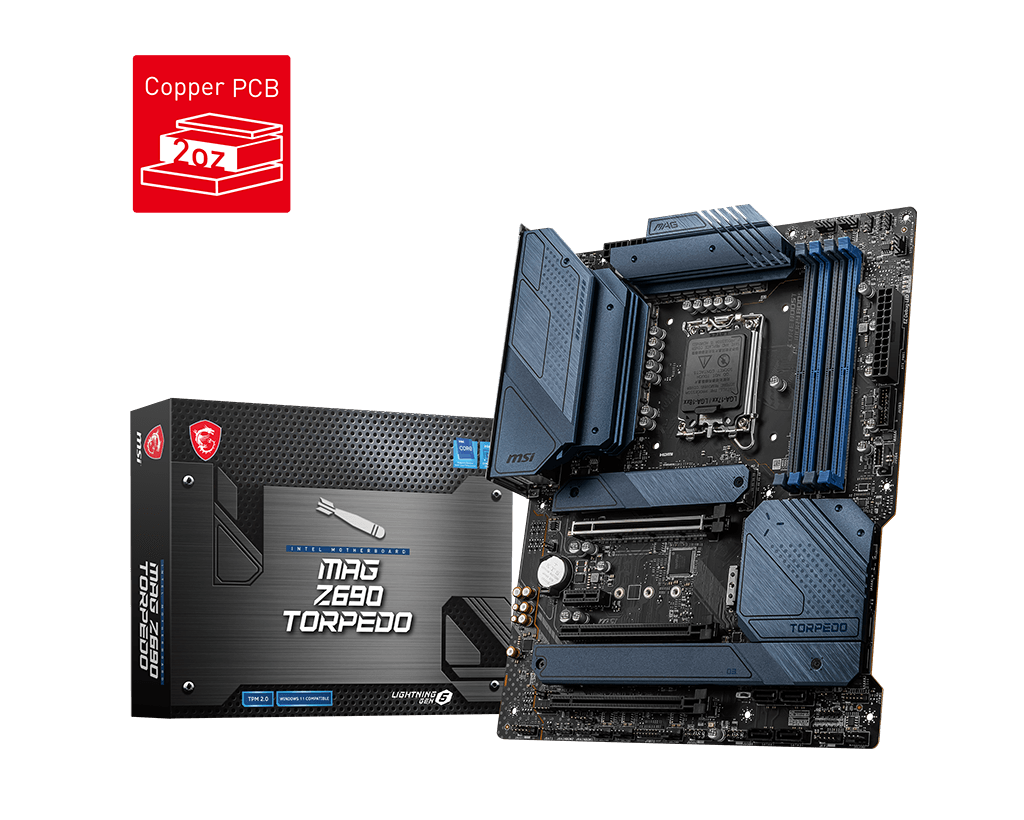

The MSI MAG Z690 TORPEDO, released in November 2021, is a feature-packed ATX motherboard designed to support Intel’s latest processors using the LGA 1700 socket. Built on the Intel Z690 chipset, this motherboard caters to gamers and enthusiasts who require robust performance and advanced connectivity options.

Key Specifications:

  • CPU Socket: Intel LGA 1700
  • Chipset: Intel Z690
  • Form Factor: ATX (30.5×24.4cm)
  • Power Delivery: 16+1+1 phase design with each phase delivering 70A, ensuring stable power delivery to the CPU

Memory:

  • Type: DDR5
  • Speed: Supports up to 6400MHz (PC5-51200)
  • Slots: 4 dual-channel slots
  • Maximum Capacity: Up to 128GB
  • Technologies: Supports XMP 3.0 and Intel Optane

Expansion Slots:

  • PCIe:
    • 1 x PCIe 5.0 x16
    • 2 x PCIe 3.0 x16
    • 1 x PCIe 3.0 x1
  • Multi-GPU Support: AMD CrossFire

Storage:

  • M.2 Slots: 4 slots supporting PCIe 4.0, NVMe, and SATA with form factors 2242, 2260, 2280, and 22110
  • SATA Ports: 6 SATA3 (6Gb/s) ports with RAID support

Graphics Outputs:

  • HDMI and DisplayPort for integrated graphics

Connectivity:

  • USB Ports:
    • Rear:
      • 1 x USB 3.x 20Gbps (Type-C)
      • 3 x USB 3.x 10Gbps (Type-A)
      • 2 x USB 3.x 5Gbps (Type-A)
      • 2 x USB 2.0 (Type-A)
    • Internal Headers:
      • 1 x USB 3.0 header
      • 2 x USB 2.0 headers
      • 1 x USB 3.1 Type-C header
  • Network:
    • Ethernet: Intel I225V chipset providing 2.5Gbps LAN connectivity
    • RJ-45 Ports: 1

Audio:

  • Chipset: Realtek ALC4080
  • Output: 7.1-channel HD audio

Cooling and Headers:

  • Cooling:
    • Includes M.2 heatsinks
    • Multiple fan headers: 6 x system fan 4-pin headers
  • RGB and ARGB Headers:
    • 1 x RGB 12V 4-pin header
    • 3 x ARGB 5V 3-pin headers

Special Features:

  • DrMOS: High-efficiency power delivery
  • UEFI BIOS: User-friendly BIOS interface
  • TPM Header: Enhanced security

The MSI MAG Z690 TORPEDO is designed to deliver top-tier performance with its robust power delivery system, high-speed memory support, and extensive connectivity options. Its compatibility with the latest Intel processors and advanced storage solutions makes it an ideal choice for gamers and PC enthusiasts seeking a reliable and high-performance motherboard.
