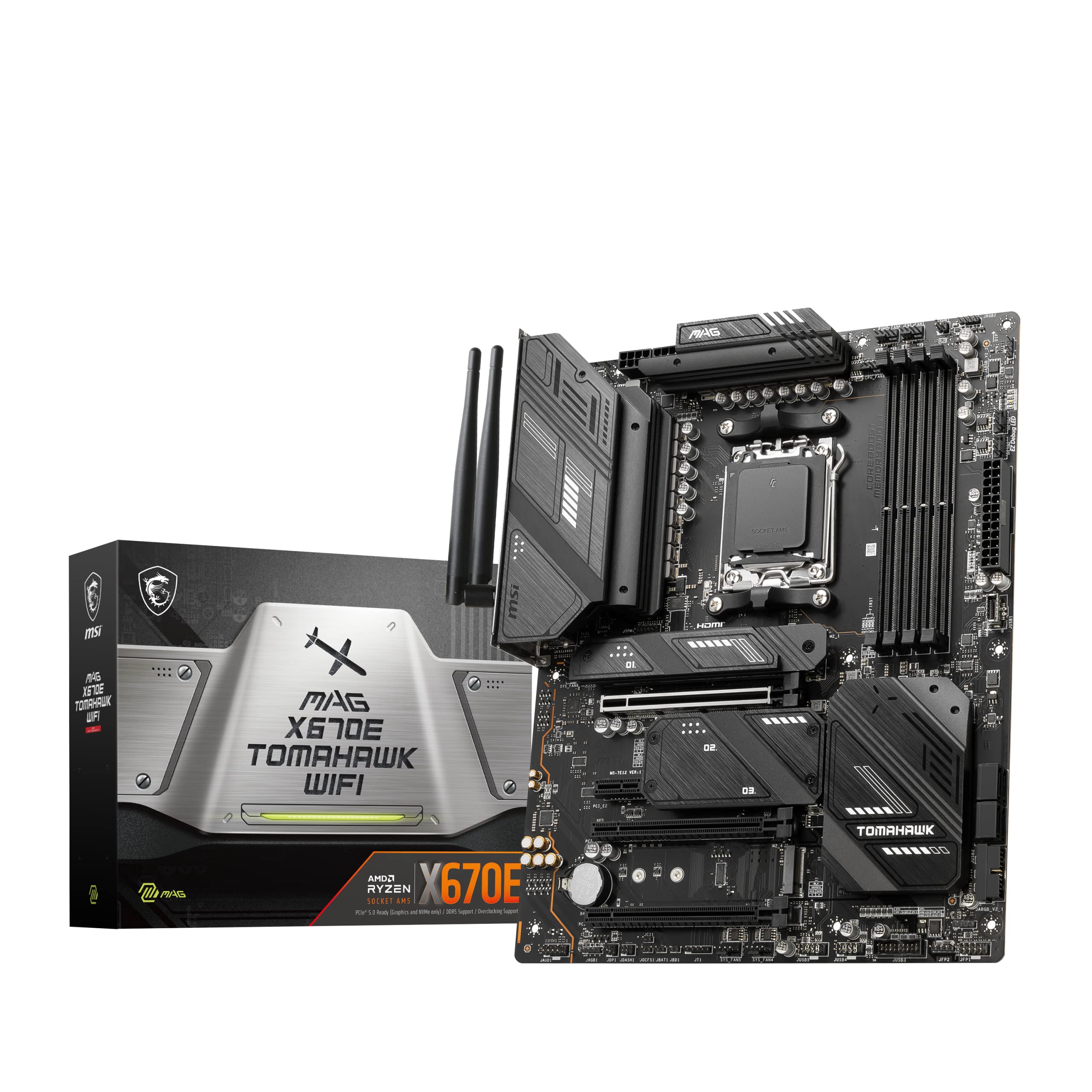

MSI MAG X670E TOMAHAWK WIFI

The MSI MAG X670E TOMAHAWK WIFI is a high-performance ATX motherboard engineered for the latest AMD Ryzen processors using the AM5 socket, making it a
03 May
« Back to Glossary Index

The MSI MAG X670E TOMAHAWK WIFI is a high-performance ATX motherboard engineered for the latest AMD Ryzen processors using the AM5 socket, making it an ideal foundation for cutting-edge desktop builds. Built on the robust AMD X670E chipset, it combines advanced power delivery, extensive connectivity, and premium thermal solutions to support enthusiast-level computing.

Designed to take full advantage of DDR5 memory, the board supports memory speeds up to 7800MHz through four DIMM slots, and accommodates up to 192GB in a dual-channel configuration. It also includes EXPO memory overclocking support, ensuring users can push their system to maximum potential with compatible memory modules.

The 17-phase power design ensures stable and efficient power delivery, essential for high-performance CPUs, while robust heatsinks on the VRM and M.2 slots contribute to thermal efficiency under heavy workloads. Expansion support is equally impressive, offering PCIe 5.0 x16 graphics support, along with additional slots including PCIe 4.0 and 3.0, ensuring compatibility with a wide range of GPUs and add-in cards.

For storage, the board is equipped with four M.2 slots (supporting PCIe 5.0 and 4.0) and four SATA3 ports, offering flexibility for both ultra-fast NVMe drives and traditional storage devices. The PCIe lane sharing feature allows flexible configuration for different performance needs.

In terms of connectivity, the MAG X670E TOMAHAWK WIFI provides extensive options including:

  • USB 3.x 20Gbps Type-C and USB 10Gbps Type-A/C ports

  • 2.5Gbps LAN via Realtek 8125B

  • Wi-Fi and Bluetooth powered by AMD’s wireless chipset

  • HDMI, DisplayPort, and Type-C video outputs for integrated graphics use

Audio is handled by the Realtek ALC1200 chipset, delivering 7.1-channel surround sound, complemented by a full suite of audio jacks and S/PDIF output. Additional features include Debug LED, BIOS Flashback, and extensive RGB connectivity through Mystic Light, with multiple 12V and 5V headers for lighting customization.

This board is a strong choice for builders looking to pair a powerful processor like the Ryzen 7000 series with top-tier features and expandability.
