The MSI GeForce RTX 4070 Ti SUPER Ventus 3X OC D6X 16GB is a high-performance graphics card from MSI, launched in January 2024. It leverages NVIDIA's
« Back to Glossary Index

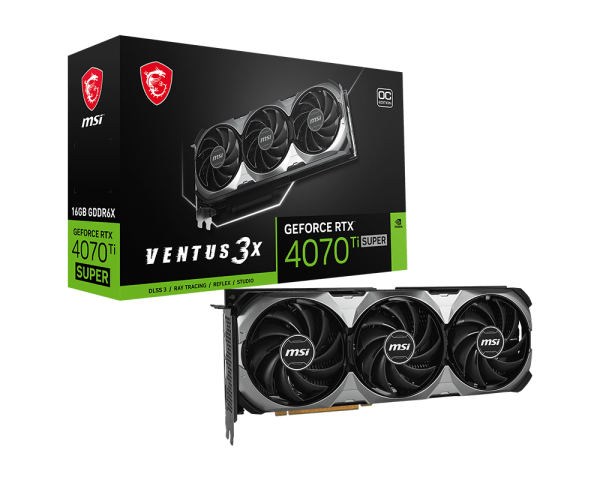

The MSI GeForce RTX 4070 Ti SUPER Ventus 3X OC D6X 16GB is a high-performance graphics card from MSI, launched in January 2024. It leverages NVIDIA’s cutting-edge RTX 40 series chipset, built on a 4nm manufacturing process, and features the RTX 4070 Ti SUPER GPU.

Key specifications include:

  • Base Clock: 2340MHz
  • Boost Clock: 2640MHz
  • OC Clock: 2655MHz
  • CUDA Cores: 8448

The card uses PCIe4.0 x16 interface, ensuring compatibility and high data transfer rates. It comes equipped with 16GB of GDDR6X memory, running at a memory clock of 21000MHz and a 256-bit memory bus, providing ample bandwidth for demanding applications and games.

For display outputs, the card includes:

  • 1 HDMI port
  • 3 DisplayPort outputs

It supports up to four monitors simultaneously, making it ideal for multi-display setups. The card also supports advanced features such as:

  • ZeroFan (0-dB technology)
  • 8K and 4K resolution support
  • HDR
  • HDCP 2.3

Power consumption is rated at 285W, with a recommended power supply of at least 700W. The card requires a 16-pin (12VHPWR) power connector.

Cooling is handled by a robust system featuring:

  • Heat sinks
  • Heat pipes
  • Three fan coolers

The card measures 308mm in length and 52mm in thickness, with additional features including a backplate and DrMOS technology for improved power delivery and stability. The package includes a VGA support bracket and a 2×8-pin to 16-pin connector.
