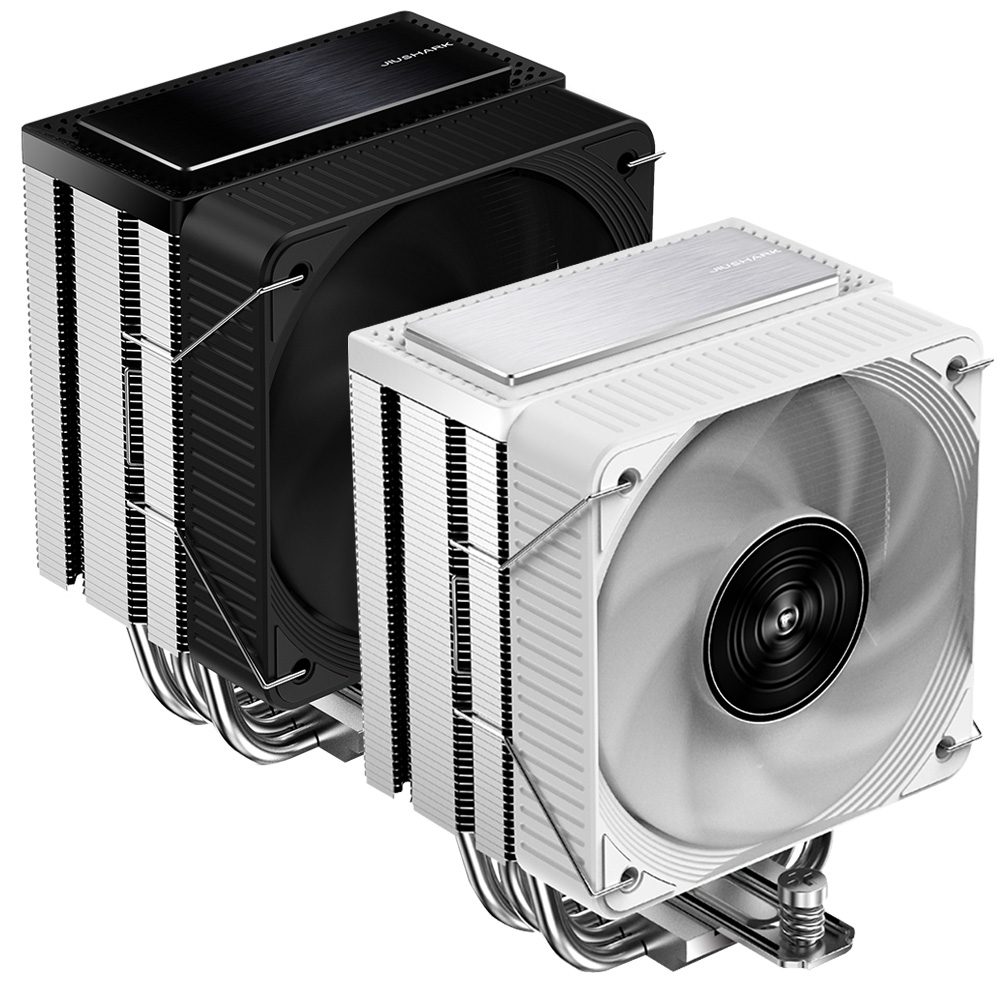

The JIUSHARK JF100RS Crystal is a high-performance air cooler introduced by JIUSHARK in January 2023, designed for efficient heat dissipation and compatibility with a wide range of processors. It features four 6mm heat pipes and supports a TDP of up to 220W, making it suitable for high-power CPUs.

This cooler is compatible with both Intel and AMD sockets, including:

  • Intel: LGA1700, LGA1200, LGA115x
  • AMD: AM5, AM4

Key dimensions and weight:

  • Width: 100mm
  • Height: 131mm
  • Weight: 450g

The cooler is equipped with a single 100mm fan, which operates with a 4-pin PWM connector, allowing for dynamic speed control. The fan specifications include:

  • Thickness: 25mm
  • Maximum Speed: 2300 RPM
  • Maximum Airflow: 47.54 CFM
  • Static Pressure: 2.44mmH₂O
  • Maximum Noise Level: 29.8 dBA

The fan uses a hydraulic bearing, which enhances durability and ensures smooth, quiet operation. The PWM support allows the fan speed to be adjusted based on thermal demands, balancing performance and noise levels.

The JIUSHARK JF100RS Crystal is a reliable and efficient cooling solution, perfect for users looking to maintain optimal CPU temperatures with a compact and effective air cooler.
