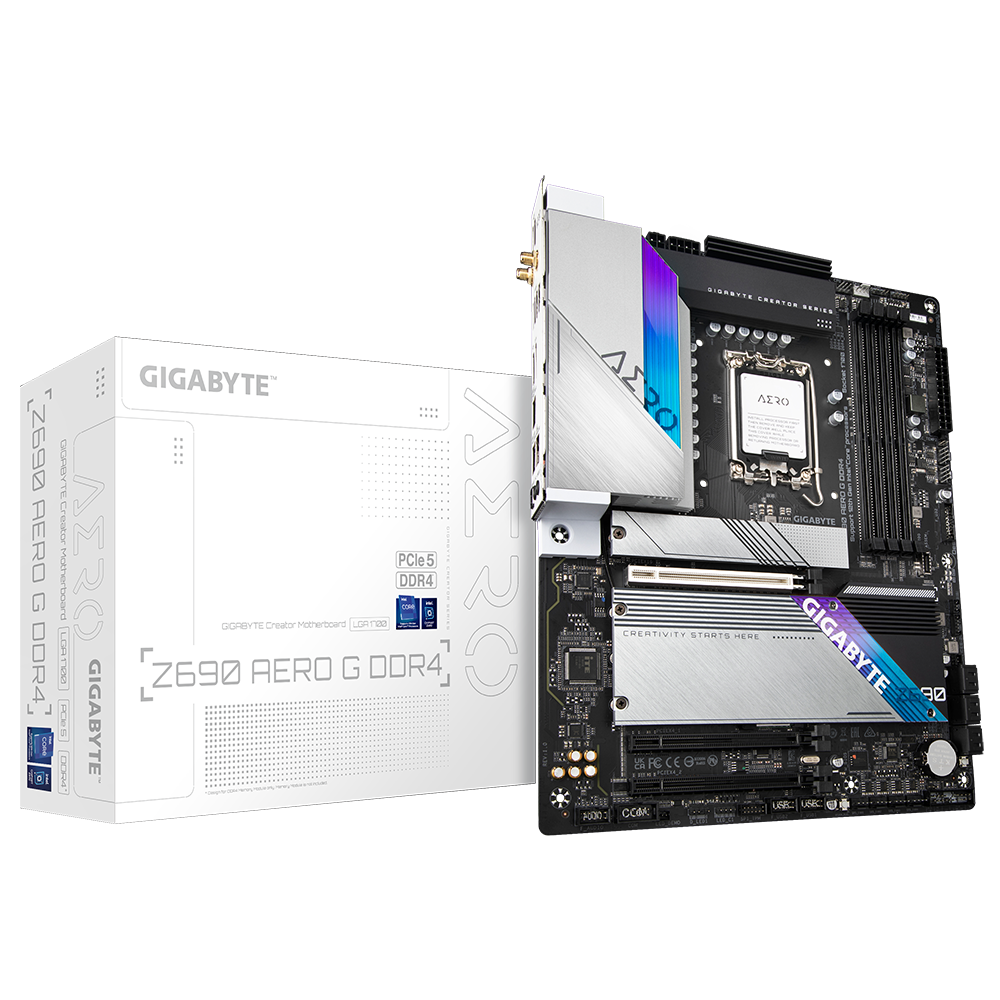

The GIGABYTE Z690 AERO G DDR4, released in November 2021, is a high-performance ATX motherboard designed for Intel CPUs, particularly those using the LGA1700 socket. It offers a robust set of features aimed at both gamers and creators who demand reliable performance and advanced connectivity options.

Key specifications include:

  • Product Type: Intel CPU motherboard
  • CPU Socket: Intel LGA1700
  • Chipset: Intel Z690
  • CPU Support: 1 CPU
  • Form Factor: ATX (30.5 x 24.4 cm)
  • Power Phase Design: 16+3 phases, each phase delivering 70A for Vcore

Memory support:

  • Memory Type: DDR4
  • Maximum Speed: Up to 5333MHz (PC4-42600)
  • Slots: 4
  • Maximum Capacity: 128GB
  • Memory Channels: Dual-channel
  • Technologies: XMP and Intel Optane support

Expansion slots and PCIe support:

  • VGA Connection: PCIe 5.0 x16
  • PCIe Versions: PCIe 5.0, PCIe 4.0, PCIe 3.0
  • PCIe Slots: 3 x PCIe x16
  • Multi-GPU Support: AMD CrossFire

Storage interfaces:

  • M.2 Slots: 4 (supporting PCIe 4.0, PCIe, NVMe, and SATA)
  • SATA3 Ports: 6 (6Gb/s)
  • M.2 Form Factors: 2260, 2280, 22110
  • RAID Support: SATA RAID

Graphics outputs:

  • HDMI
  • DisplayPort
  • Type-C

Rear I/O ports:

  • USB 3.x 20Gbps: 1 x USB Type-C
  • USB 3.x 10Gbps: 2 x USB Type-A
  • USB 3.x 5Gbps: 4 x USB Type-A
  • USB 2.0: 2 x USB Type-A
  • Ethernet: 1 x RJ-45 (Intel i225V, 2.5Gbps)
  • Audio Jacks: Yes
  • S/PDIF

Networking:

  • LAN Chipset: Intel i225V
  • LAN Speed: 2.5Gbps
  • Wireless LAN: Included
  • Bluetooth: Included

Audio:

  • Audio Chipset: Realtek ALC4080

Additional headers and features:

  • USB 3.0 Headers: 1
  • USB 2.0 Headers: 2
  • USB 3.2 Type-C Header: 1
  • RGB and ARGB Headers: 2 x RGB 12V 4-pin, 2 x ARGB 5V 3-pin
  • System Fan Headers: Yes
  • M.2 Heatsinks: Yes
  • LED System: RGB FUSION

The GIGABYTE Z690 AERO G DDR4 is built to provide a combination of performance, durability, and connectivity, making it an excellent choice for gamers, content creators, and PC builders. It supports high-speed memory, multiple storage options, and advanced networking features to ensure a robust and future-proof platform. The inclusion of RGB and ARGB headers, along with RGB FUSION compatibility, allows for extensive customization to match any build’s aesthetic.
