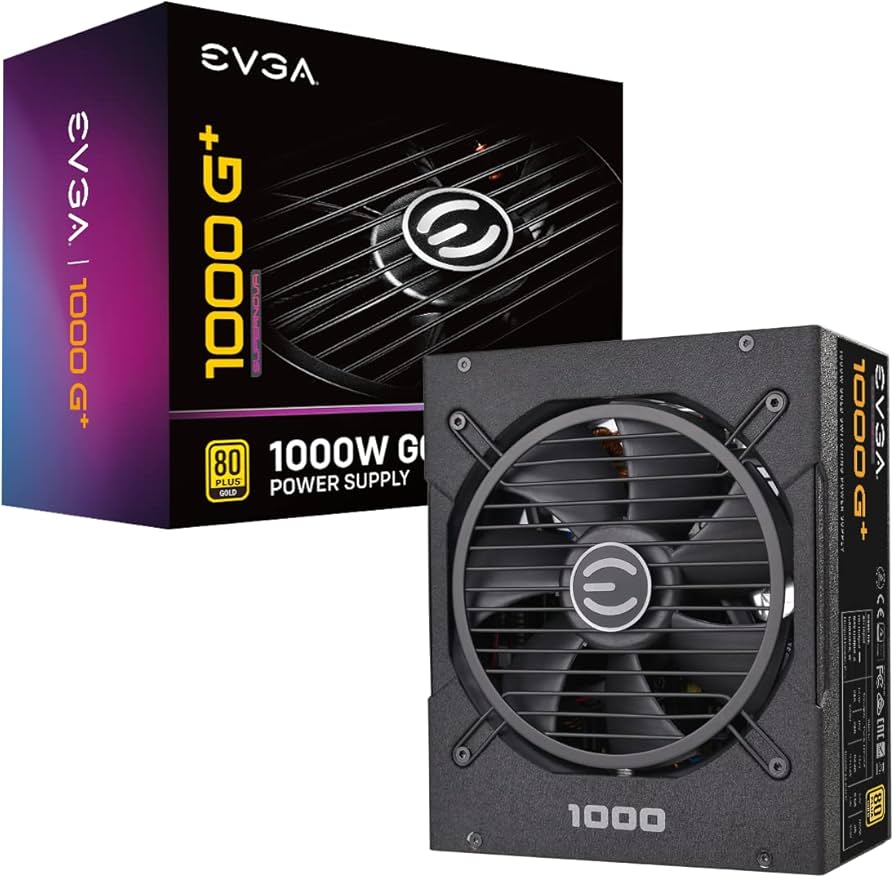

EVGA SUPERNOVA 1000G+ 80 PLUS GOLD

The EVGA SUPERNOVA 1000G+ 80 PLUS GOLD, released in June 2018, is a high-efficiency power supply unit designed for demanding PC builds. It offers robu
15 Feb
« Back to Glossary Index

The EVGA SUPERNOVA 1000G+ 80 PLUS GOLD, released in June 2018, is a high-efficiency power supply unit designed for demanding PC builds. It offers robust power delivery, comprehensive protection features, and a fully modular design, making it ideal for gaming systems, workstations, and other high-performance applications.

Key features of the EVGA SUPERNOVA 1000G+ 80 PLUS GOLD include:

  • Rated Output: 1000W
  • Efficiency Certification: 80 PLUS Gold, ensuring high energy efficiency and reduced power consumption
  • Voltage Regulation: ±2% for stable power delivery
  • +12V Rail: Single rail design with 83.3A output, providing 99% availability

Power Output:

  • +3.3V: 24A
  • +5V: 24A
  • +12V: 83.3A
  • -12V: 0.5A
  • +5Vsb: 3.0A

Cooling and Noise:

  • Cooling Fan: 135mm with Fluid Dynamic Bearing (FDB) for quiet and efficient operation
  • Fan Quantity: 1

Physical Specifications:

  • Dimensions: Depth of 180mm

Warranty:

  • A/S Warranty: 10 years of free warranty service

Connectors:

  • Cable Design: Fully modular for improved airflow and easy cable management
  • Main Power: 24-pin connector
  • Auxiliary Power: Two 8-pin (4+4) connectors
  • PCIe Power: Eight 8-pin (6+2) connectors
  • SATA Power: Twelve connectors
  • IDE Power: Six 4-pin connectors
  • FDD Power: Two connectors

Additional Features:

  • Free Voltage (FreVolt): Compatible with a wide range of voltages
  • 105°C Capacitors: High-quality capacitors for enhanced reliability and longevity
  • DC to DC Design: For stable and efficient power conversion
  • ACRF (Active Clamp Reset Forward): Ensures improved efficiency and stability

Protection Features:

  • Over Voltage Protection (OVP)
  • Under Voltage Protection (UVP)
  • Over Current Protection (OCP)
  • Over Power Protection (OPP)
  • Over Temperature Protection (OTP/OHP)
  • Short Circuit Protection (SCP)

The EVGA SUPERNOVA 1000G+ 80 PLUS GOLD PSU is designed for users seeking a reliable, efficient, and feature-rich power supply. Its high efficiency, fully modular design, and extensive protection features make it suitable for a wide range of high-performance computing applications.
