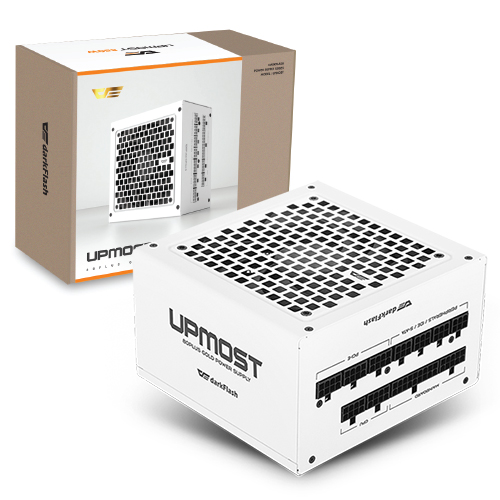

darkFlash UPMOST 850W 80PLUS GOLD FULL MODULAR

Posted by author-avatar
The darkFlash UPMOST 850W 80PLUS GOLD FULL MODULAR is a high-efficiency power supply unit (PSU) designed to deliver reliable and stable power to high-
« Back to Glossary Index

The darkFlash UPMOST 850W 80PLUS GOLD FULL MODULAR is a high-efficiency power supply unit (PSU) designed to deliver reliable and stable power to high-performance gaming PCs and workstations. With its full modular design and 80 PLUS Gold certification, this PSU is built for users who demand both performance and flexibility in their power delivery.

Key Specifications:

  • Rated Output: 850W
  • 80 PLUS Certification: Gold
  • Output Method: +12V Single Rail
  • +12V Usability: 99%
  • PFC Circuit: Active PFC
  • Power Factor (PF): 99%
  • Cooling Fan: 120mm
  • Bearing Type: FDB (Fluid Dynamic Bearing)
  • Depth: 140mm
  • Warranty Period: 10 Years (Free Warranty)

DC Output:

  • +3.3V Output: 20A
  • +5V Output: 20A
  • +12V Output: 70.5A
  • -12V Output: 0.3A
  • +5Vsb Output: 2.5A

Connectors:

  • Cable Connection: Full Modular
  • Main Power: 24-pin (20+4)
  • Auxiliary Power: 8-pin (4+4) x 2
  • PCIe 8-pin (6+2): 3
  • SATA: 8
  • IDE 4-pin: 4
  • FDD: 1

Additional Features:

  • Fanless Mode: Yes
  • Free Voltage: Yes
  • Flat Cables: Yes

Internal Design:

  • 105°C Capacitors: Yes
  • DC to DC Design: Yes

Protection Circuits:

  • Over Voltage Protection (OVP): Yes
  • Under Voltage Protection (UVP): Yes
  • Over Current Protection (OCP): Yes
  • Over Power Protection (OPP): Yes
  • Over Temperature Protection (OTP/OHP): Yes
  • Short Circuit Protection (SCP): Yes

The darkFlash UPMOST 850W 80PLUS GOLD FULL MODULAR power supply offers outstanding efficiency and reliability for high-end computing needs. Its full modular design ensures a clean and organized build, while its robust protection features and high-quality components provide peace of mind for users who demand the best performance and stability from their systems. Whether for gaming, content creation, or professional use, this PSU is an excellent choice for powering your advanced setup.
