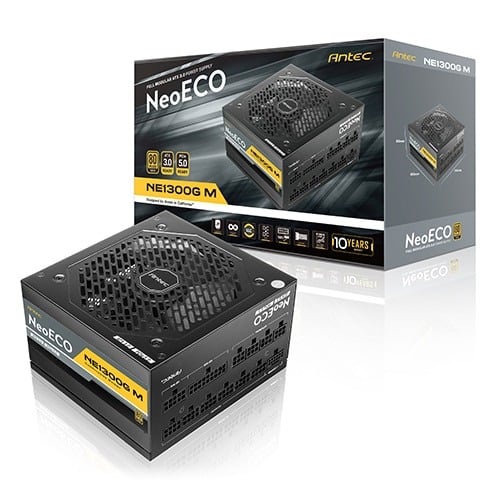

Antec NeoECO 1300W 80 PLUS GOLD Fully Modular ATX3.0

The Antec NeoECO 1300W 80 PLUS GOLD Fully Modular ATX3.0 is a high-efficiency power supply unit designed for modern, high-performance PC systems, particularly those requiring robust and stable power delivery under heavy loads. Certified with the 80 PLUS Gold rating, it ensures high energy efficiency, reducing power consumption and heat output.

Built with the ATX 3.0 standard, this PSU is forward-compatible with the latest hardware, including next-gen GPUs. It features a +12V single-rail design with an exceptional 99% availability, delivering up to 108A to meet the demands of high-end graphics cards and multi-core CPUs. The unit supports Active PFC and a DC-to-DC architecture, alongside LLC resonant converters, ensuring tight voltage regulation and stable performance.

Its fully modular design allows users to connect only the cables they need, contributing to a cleaner build and improved airflow. It comes equipped with a comprehensive set of connectors, including:

• 1x 24-pin main power

• 2x 8-pin (4+4) CPU power

• 1x 12VHPWR (12+4 pin) for PCIe 5.0 GPUs

• 4x PCIe 8-pin (6+2)

• 12x SATA

• 4x IDE 4-pin

Cooling is handled by a 120mm fluid dynamic bearing (FDB) fan, which operates quietly and is supported by fanless mode and automatic fan control for optimized thermal performance. Additional features such as flat cables and a 140mm compact depth contribute to easier cable management and compatibility with various chassis sizes.

Internally, the PSU uses 105°C-rated capacitors for enhanced reliability and lifespan. It also includes an extensive array of protection circuits, covering OVP, UVP, OCP, OPP, OTP, SCP, SIP, and NLO, safeguarding both the power supply and connected components.

Backed by a 10-year warranty, the NeoECO 1300W Gold stands out as a future-proof, dependable choice for enthusiasts building powerful gaming rigs or workstations.
